Engineered Gas Compressors

Built around your process. Engineered for reliable gas compression.

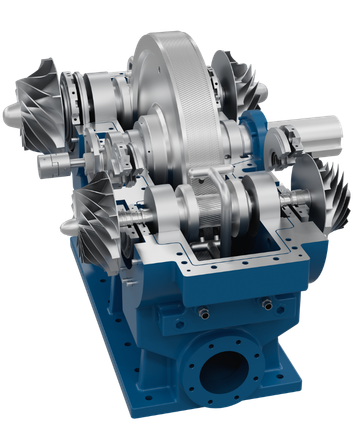

gas compressor

  • Solutions for Complex Gas Services

    FS-Elliott compressors can be engineered for a broad range of industrial gas services while maintaining efficient, oil-free operation. Supported gases include:
    • Air
    • Nitrogen
    • Carbon dioxide
    • Argon
    • Methane
    • Ammonia

  • Oil-Free Gas Path & Reliable Containment

    An oil-free gas path helps protect gas purity, process integrity, and environmental performance. Materials and sealing arrangements are selected based on the gas composition and operating conditions.

    Available options include Babbitt seals and single- or tandem-dry gas seals. For hydrocarbon, regulated, and specialty gases, non-contact dry gas seals help reduce leakage, oil contamination, emissions, and maintenance.

Custom-Engineered Gas Compressors


Built on more than six decades of centrifugal compression experience, FS-Elliott gas compressors combine proven integrally geared technology with application-specific engineering. Each system is designed to balance aerodynamic efficiency, mechanical reliability, operational flexibility, and serviceability for demanding continuous-duty applications.

Compressors are engineered and tested in accordance with the requirements of API 614 and API 617 for gas applications and can be configured to meet project-specific performance and documentation requirements.

Operating Ranges
  • Power: 1,500–8,000 hp (approximately 1,120–5,970 kW)
  • Flow: 4,000–12,000 cfm (approximately 113–340 m³/min)
  • Pressure: Up to 100 barg (1,450 psig)
  • Configuration: Up to six stages of compression
Actual performance and configuration depend on gas composition, inlet conditions, required pressure ratio, site conditions, and other application-specific requirements.
